1. Basic Structure and Architectural Style of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Product Class

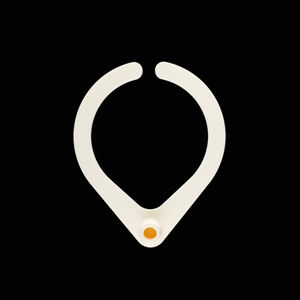

(Transparent Ceramics)
Quartz porcelains, also referred to as merged quartz or merged silica ceramics, are advanced inorganic materials derived from high-purity crystalline quartz (SiO TWO) that undergo regulated melting and loan consolidation to create a dense, non-crystalline (amorphous) or partially crystalline ceramic framework.
Unlike standard ceramics such as alumina or zirconia, which are polycrystalline and composed of numerous stages, quartz ceramics are mostly composed of silicon dioxide in a network of tetrahedrally coordinated SiO four systems, providing extraordinary chemical pureness– commonly surpassing 99.9% SiO ₂.
The distinction between fused quartz and quartz ceramics depends on processing: while fused quartz is usually a totally amorphous glass formed by fast cooling of molten silica, quartz ceramics might include controlled condensation (devitrification) or sintering of great quartz powders to accomplish a fine-grained polycrystalline or glass-ceramic microstructure with improved mechanical effectiveness.
This hybrid approach combines the thermal and chemical security of fused silica with improved fracture toughness and dimensional stability under mechanical tons.
1.2 Thermal and Chemical Stability Systems
The remarkable efficiency of quartz ceramics in severe atmospheres comes from the strong covalent Si– O bonds that create a three-dimensional connect with high bond power (~ 452 kJ/mol), giving amazing resistance to thermal destruction and chemical attack.
These products display an extremely reduced coefficient of thermal growth– roughly 0.55 × 10 ⁻⁶/ K over the array 20– 300 ° C– making them extremely resistant to thermal shock, an essential characteristic in applications involving rapid temperature cycling.
They maintain structural integrity from cryogenic temperatures up to 1200 ° C in air, and even greater in inert atmospheres, prior to softening begins around 1600 ° C.
Quartz ceramics are inert to many acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the stability of the SiO two network, although they are susceptible to strike by hydrofluoric acid and strong antacid at elevated temperature levels.
This chemical resilience, combined with high electrical resistivity and ultraviolet (UV) transparency, makes them excellent for usage in semiconductor processing, high-temperature heaters, and optical systems subjected to rough conditions.
2. Manufacturing Processes and Microstructural Control

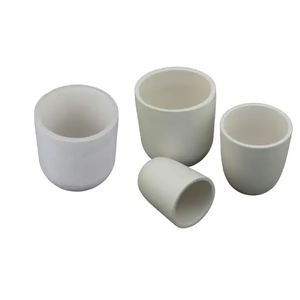

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz porcelains entails sophisticated thermal handling strategies designed to maintain pureness while attaining wanted density and microstructure.
One usual method is electric arc melting of high-purity quartz sand, adhered to by regulated air conditioning to create merged quartz ingots, which can after that be machined into parts.
For sintered quartz porcelains, submicron quartz powders are compressed through isostatic pressing and sintered at temperature levels in between 1100 ° C and 1400 ° C, commonly with minimal ingredients to promote densification without generating extreme grain development or phase change.
An essential obstacle in processing is avoiding devitrification– the spontaneous condensation of metastable silica glass right into cristobalite or tridymite stages– which can compromise thermal shock resistance due to quantity adjustments during phase changes.
Suppliers utilize accurate temperature control, fast air conditioning cycles, and dopants such as boron or titanium to reduce undesirable condensation and maintain a stable amorphous or fine-grained microstructure.
2.2 Additive Manufacturing and Near-Net-Shape Fabrication
Recent developments in ceramic additive production (AM), especially stereolithography (SLA) and binder jetting, have actually enabled the fabrication of intricate quartz ceramic components with high geometric accuracy.
In these processes, silica nanoparticles are suspended in a photosensitive resin or precisely bound layer-by-layer, followed by debinding and high-temperature sintering to attain complete densification.
This approach decreases material waste and enables the production of intricate geometries– such as fluidic networks, optical cavities, or heat exchanger components– that are hard or difficult to achieve with conventional machining.
Post-processing methods, consisting of chemical vapor seepage (CVI) or sol-gel finish, are occasionally put on seal surface area porosity and improve mechanical and ecological longevity.
These developments are increasing the application scope of quartz porcelains into micro-electromechanical systems (MEMS), lab-on-a-chip tools, and personalized high-temperature components.
3. Functional Characteristics and Performance in Extreme Environments
3.1 Optical Transparency and Dielectric Behavior
Quartz ceramics display special optical residential properties, including high transmission in the ultraviolet, noticeable, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them indispensable in UV lithography, laser systems, and space-based optics.
This openness arises from the absence of electronic bandgap changes in the UV-visible array and very little scattering as a result of homogeneity and low porosity.
Additionally, they possess excellent dielectric residential properties, with a reduced dielectric constant (~ 3.8 at 1 MHz) and marginal dielectric loss, enabling their usage as shielding parts in high-frequency and high-power electronic systems, such as radar waveguides and plasma activators.
Their ability to keep electrical insulation at raised temperature levels better boosts dependability sought after electrical environments.
3.2 Mechanical Habits and Long-Term Sturdiness
In spite of their high brittleness– an usual characteristic among porcelains– quartz ceramics demonstrate great mechanical stamina (flexural strength up to 100 MPa) and excellent creep resistance at high temperatures.
Their firmness (around 5.5– 6.5 on the Mohs range) offers resistance to surface area abrasion, although treatment must be taken during dealing with to stay clear of chipping or fracture breeding from surface defects.
Environmental resilience is one more crucial advantage: quartz porcelains do not outgas dramatically in vacuum, resist radiation damage, and preserve dimensional security over long term exposure to thermal cycling and chemical settings.
This makes them recommended materials in semiconductor construction chambers, aerospace sensing units, and nuclear instrumentation where contamination and failure must be decreased.
4. Industrial, Scientific, and Arising Technological Applications
4.1 Semiconductor and Photovoltaic Manufacturing Solutions
In the semiconductor industry, quartz ceramics are common in wafer processing devices, consisting of heating system tubes, bell containers, susceptors, and shower heads utilized in chemical vapor deposition (CVD) and plasma etching.
Their pureness prevents metal contamination of silicon wafers, while their thermal stability makes sure consistent temperature level circulation throughout high-temperature handling steps.
In photovoltaic production, quartz elements are utilized in diffusion heaters and annealing systems for solar cell production, where regular thermal accounts and chemical inertness are necessary for high yield and effectiveness.
The demand for larger wafers and greater throughput has actually driven the growth of ultra-large quartz ceramic frameworks with enhanced homogeneity and reduced problem density.
4.2 Aerospace, Protection, and Quantum Modern Technology Integration
Past commercial processing, quartz ceramics are used in aerospace applications such as missile assistance home windows, infrared domes, and re-entry lorry elements due to their capability to hold up against severe thermal gradients and aerodynamic tension.
In defense systems, their openness to radar and microwave regularities makes them ideal for radomes and sensing unit housings.
A lot more just recently, quartz ceramics have located functions in quantum modern technologies, where ultra-low thermal growth and high vacuum compatibility are needed for precision optical dental caries, atomic catches, and superconducting qubit units.
Their ability to lessen thermal drift makes sure long coherence times and high dimension accuracy in quantum computer and picking up systems.
In summary, quartz porcelains stand for a class of high-performance products that bridge the gap in between traditional ceramics and specialized glasses.
Their exceptional combination of thermal security, chemical inertness, optical transparency, and electric insulation enables innovations operating at the limits of temperature, purity, and accuracy.
As producing techniques advance and demand grows for products efficient in holding up against increasingly severe conditions, quartz porcelains will continue to play a foundational function in advancing semiconductor, energy, aerospace, and quantum systems.
