1. Product Fundamentals and Crystal Chemistry
1.1 Structure and Polymorphic Structure

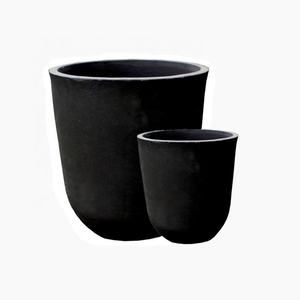

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its exceptional solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in stacking sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most highly relevant.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) lead to a high melting point (~ 2700 ° C), reduced thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and exceptional resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC lacks a native lustrous stage, adding to its security in oxidizing and corrosive ambiences approximately 1600 ° C.
Its vast bandgap (2.3– 3.3 eV, relying on polytype) additionally enhances it with semiconductor homes, enabling dual usage in structural and digital applications.
1.2 Sintering Obstacles and Densification Techniques
Pure SiC is incredibly tough to compress due to its covalent bonding and low self-diffusion coefficients, necessitating the use of sintering aids or advanced processing strategies.
Reaction-bonded SiC (RB-SiC) is created by penetrating porous carbon preforms with molten silicon, creating SiC in situ; this method yields near-net-shape elements with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon ingredients to promote densification at ~ 2000– 2200 ° C under inert environment, accomplishing > 99% academic density and remarkable mechanical residential or commercial properties.
Liquid-phase sintered SiC (LPS-SiC) utilizes oxide ingredients such as Al ₂ O FIVE– Y TWO O THREE, forming a transient fluid that improves diffusion however may minimize high-temperature toughness as a result of grain-boundary phases.
Warm pressing and stimulate plasma sintering (SPS) offer quick, pressure-assisted densification with fine microstructures, ideal for high-performance components needing marginal grain growth.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Stamina, Firmness, and Put On Resistance
Silicon carbide porcelains display Vickers firmness values of 25– 30 GPa, 2nd just to ruby and cubic boron nitride among engineering products.
Their flexural strength typically varies from 300 to 600 MPa, with crack durability (K_IC) of 3– 5 MPa · m 1ST/ ²– moderate for ceramics but improved through microstructural engineering such as whisker or fiber reinforcement.
The mix of high hardness and elastic modulus (~ 410 GPa) makes SiC exceptionally resistant to unpleasant and erosive wear, outmatching tungsten carbide and hardened steel in slurry and particle-laden settings.

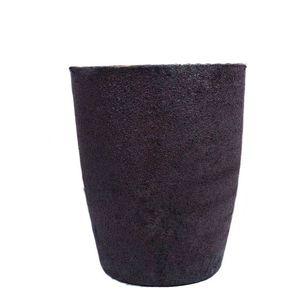

( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC components show service lives several times longer than standard alternatives.
Its reduced thickness (~ 3.1 g/cm THREE) further contributes to use resistance by lowering inertial forces in high-speed revolving parts.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinct features is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline kinds, and as much as 490 W/(m · K) for single-crystal 4H-SiC– surpassing most metals except copper and aluminum.
This residential or commercial property allows effective warmth dissipation in high-power electronic substrates, brake discs, and heat exchanger components.
Coupled with reduced thermal development, SiC shows exceptional thermal shock resistance, quantified by the R-parameter (σ(1– ν)k/ αE), where high worths indicate durability to fast temperature level changes.
As an example, SiC crucibles can be warmed from room temperature to 1400 ° C in minutes without breaking, a task unattainable for alumina or zirconia in similar conditions.
In addition, SiC keeps toughness approximately 1400 ° C in inert ambiences, making it perfect for heating system fixtures, kiln furnishings, and aerospace components subjected to severe thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Habits in Oxidizing and Reducing Ambiences
At temperature levels below 800 ° C, SiC is very steady in both oxidizing and reducing environments.
Above 800 ° C in air, a safety silica (SiO TWO) layer kinds on the surface using oxidation (SiC + 3/2 O TWO → SiO TWO + CO), which passivates the material and slows additional destruction.
However, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, causing accelerated recession– a crucial factor to consider in generator and burning applications.
In reducing atmospheres or inert gases, SiC stays steady up to its decomposition temperature level (~ 2700 ° C), with no stage changes or toughness loss.
This security makes it appropriate for molten metal handling, such as light weight aluminum or zinc crucibles, where it withstands moistening and chemical assault much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid combinations (e.g., HF– HNO THREE).
It reveals excellent resistance to alkalis up to 800 ° C, though long term direct exposure to thaw NaOH or KOH can cause surface area etching through development of soluble silicates.
In molten salt settings– such as those in concentrated solar power (CSP) or atomic power plants– SiC shows remarkable rust resistance compared to nickel-based superalloys.
This chemical robustness underpins its usage in chemical procedure tools, consisting of valves, linings, and warmth exchanger tubes dealing with aggressive media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Emerging Frontiers
4.1 Established Makes Use Of in Energy, Defense, and Production
Silicon carbide ceramics are indispensable to various high-value industrial systems.
In the energy field, they act as wear-resistant linings in coal gasifiers, elements in nuclear fuel cladding (SiC/SiC composites), and substrates for high-temperature solid oxide fuel cells (SOFCs).
Protection applications include ballistic shield plates, where SiC’s high hardness-to-density proportion gives premium security versus high-velocity projectiles compared to alumina or boron carbide at lower cost.
In production, SiC is made use of for accuracy bearings, semiconductor wafer taking care of components, and rough blowing up nozzles because of its dimensional stability and purity.
Its usage in electric automobile (EV) inverters as a semiconductor substrate is rapidly growing, driven by effectiveness gains from wide-bandgap electronics.
4.2 Next-Generation Developments and Sustainability
Recurring research focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which show pseudo-ductile habits, enhanced strength, and retained stamina over 1200 ° C– optimal for jet engines and hypersonic vehicle leading sides.
Additive production of SiC using binder jetting or stereolithography is progressing, enabling intricate geometries formerly unattainable through standard creating techniques.
From a sustainability point of view, SiC’s longevity minimizes replacement frequency and lifecycle discharges in industrial systems.
Recycling of SiC scrap from wafer slicing or grinding is being established via thermal and chemical recovery procedures to redeem high-purity SiC powder.
As markets push towards greater efficiency, electrification, and extreme-environment operation, silicon carbide-based porcelains will continue to be at the forefront of innovative products design, connecting the gap in between structural strength and practical flexibility.
