1. The Science and Structure of Alumina Porcelain Products
1.1 Crystallography and Compositional Versions of Aluminum Oxide

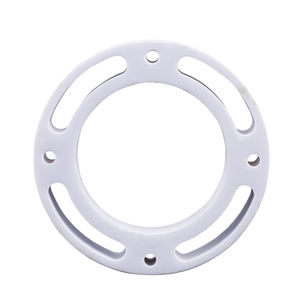

(Alumina Ceramics Rings)
Alumina ceramic rings are made from light weight aluminum oxide (Al two O THREE), a compound renowned for its phenomenal equilibrium of mechanical strength, thermal security, and electric insulation.
One of the most thermodynamically steady and industrially pertinent phase of alumina is the alpha (α) phase, which takes shape in a hexagonal close-packed (HCP) structure coming from the diamond household.
In this arrangement, oxygen ions develop a dense latticework with aluminum ions inhabiting two-thirds of the octahedral interstitial sites, leading to a very stable and durable atomic structure.
While pure alumina is theoretically 100% Al Two O THREE, industrial-grade products frequently have little portions of ingredients such as silica (SiO TWO), magnesia (MgO), or yttria (Y ₂ O THREE) to control grain growth throughout sintering and improve densification.
Alumina porcelains are identified by purity degrees: 96%, 99%, and 99.8% Al Two O three are common, with greater pureness associating to enhanced mechanical buildings, thermal conductivity, and chemical resistance.
The microstructure– particularly grain size, porosity, and phase circulation– plays a crucial role in identifying the final performance of alumina rings in service atmospheres.
1.2 Trick Physical and Mechanical Characteristic
Alumina ceramic rings exhibit a collection of residential or commercial properties that make them vital popular industrial setups.
They possess high compressive toughness (approximately 3000 MPa), flexural toughness (generally 350– 500 MPa), and outstanding hardness (1500– 2000 HV), making it possible for resistance to put on, abrasion, and contortion under load.
Their reduced coefficient of thermal expansion (approximately 7– 8 × 10 ⁻⁶/ K) guarantees dimensional stability across large temperature arrays, decreasing thermal stress and anxiety and cracking throughout thermal biking.
Thermal conductivity varieties from 20 to 30 W/m · K, depending upon purity, enabling moderate warm dissipation– adequate for numerous high-temperature applications without the demand for energetic cooling.

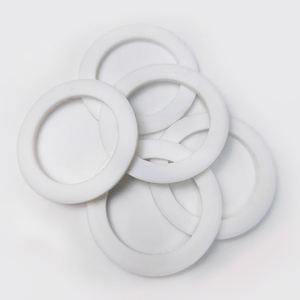

( Alumina Ceramics Ring)
Electrically, alumina is an outstanding insulator with a quantity resistivity going beyond 10 ¹⁴ Ω · cm and a dielectric toughness of around 10– 15 kV/mm, making it perfect for high-voltage insulation components.
Moreover, alumina demonstrates superb resistance to chemical strike from acids, alkalis, and molten steels, although it is at risk to strike by strong antacid and hydrofluoric acid at raised temperature levels.
2. Production and Precision Engineering of Alumina Bands
2.1 Powder Handling and Shaping Strategies
The production of high-performance alumina ceramic rings begins with the selection and preparation of high-purity alumina powder.
Powders are typically manufactured through calcination of light weight aluminum hydroxide or with progressed methods like sol-gel handling to accomplish fine particle dimension and slim dimension circulation.
To form the ring geometry, several forming methods are employed, including:
Uniaxial pushing: where powder is compacted in a die under high stress to develop a “environment-friendly” ring.
Isostatic pressing: applying consistent stress from all instructions using a fluid medium, causing higher thickness and even more uniform microstructure, specifically for facility or large rings.
Extrusion: ideal for long cylindrical kinds that are later on reduced into rings, often used for lower-precision applications.
Injection molding: utilized for complex geometries and tight resistances, where alumina powder is blended with a polymer binder and injected right into a mold and mildew.
Each approach affects the final density, grain alignment, and flaw circulation, demanding cautious process option based upon application requirements.
2.2 Sintering and Microstructural Development
After forming, the eco-friendly rings go through high-temperature sintering, normally between 1500 ° C and 1700 ° C in air or regulated environments.
Throughout sintering, diffusion mechanisms drive particle coalescence, pore elimination, and grain development, bring about a fully dense ceramic body.
The rate of heating, holding time, and cooling down profile are exactly managed to avoid splitting, warping, or exaggerated grain growth.
Ingredients such as MgO are commonly presented to inhibit grain limit flexibility, causing a fine-grained microstructure that improves mechanical strength and integrity.
Post-sintering, alumina rings might go through grinding and washing to attain tight dimensional resistances ( ± 0.01 mm) and ultra-smooth surface coatings (Ra < 0.1 µm), vital for securing, birthing, and electrical insulation applications.
3. Useful Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are extensively used in mechanical systems because of their wear resistance and dimensional security.
Key applications consist of:
Securing rings in pumps and shutoffs, where they resist erosion from unpleasant slurries and corrosive liquids in chemical processing and oil & gas markets.
Birthing elements in high-speed or destructive settings where metal bearings would deteriorate or require regular lubrication.
Overview rings and bushings in automation devices, offering low rubbing and long life span without the requirement for oiling.
Use rings in compressors and turbines, minimizing clearance between revolving and fixed parts under high-pressure conditions.
Their capacity to keep efficiency in completely dry or chemically hostile atmospheres makes them superior to lots of metallic and polymer options.
3.2 Thermal and Electrical Insulation Roles
In high-temperature and high-voltage systems, alumina rings function as essential protecting parts.
They are used as:
Insulators in heating elements and furnace components, where they sustain resistive cables while withstanding temperatures over 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, avoiding electrical arcing while preserving hermetic seals.
Spacers and support rings in power electronics and switchgear, isolating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their low dielectric loss and high break down strength guarantee signal stability.
The mix of high dielectric stamina and thermal stability allows alumina rings to function accurately in settings where organic insulators would certainly degrade.
4. Material Improvements and Future Overview
4.1 Composite and Doped Alumina Solutions
To even more boost efficiency, researchers and suppliers are creating innovative alumina-based composites.
Instances consist of:
Alumina-zirconia (Al Two O TWO-ZrO TWO) compounds, which display boosted fracture sturdiness with makeover toughening mechanisms.
Alumina-silicon carbide (Al two O TWO-SiC) nanocomposites, where nano-sized SiC bits boost hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can change grain border chemistry to enhance high-temperature toughness and oxidation resistance.
These hybrid products prolong the operational envelope of alumina rings into even more extreme conditions, such as high-stress vibrant loading or quick thermal biking.
4.2 Arising Trends and Technical Assimilation
The future of alumina ceramic rings lies in smart assimilation and accuracy production.
Patterns include:
Additive manufacturing (3D printing) of alumina components, making it possible for complicated internal geometries and tailored ring designs formerly unachievable with traditional methods.
Useful grading, where make-up or microstructure varies across the ring to enhance performance in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking by means of ingrained sensing units in ceramic rings for anticipating upkeep in industrial machinery.
Raised usage in renewable resource systems, such as high-temperature fuel cells and focused solar power plants, where material integrity under thermal and chemical anxiety is vital.
As sectors demand greater effectiveness, longer lifespans, and decreased maintenance, alumina ceramic rings will remain to play an essential function in enabling next-generation engineering solutions.
