Intro: Secret tools in power electronics
Silicon-controlled rectifiers (SCRs), additionally called thyristors, are semiconductor power devices with a four-layer triple joint structure (PNPN). Since its introduction in the 1950s, SCRs have been widely made use of in commercial automation, power systems, home device control and various other fields as a result of their high hold up against voltage, large present bring capability, fast feedback and easy control. With the advancement of innovation, SCRs have developed right into many kinds, including unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The differences in between these kinds are not just reflected in the structure and functioning principle, however additionally determine their applicability in different application circumstances. This post will certainly begin with a technological point of view, integrated with specific parameters, to deeply evaluate the main distinctions and typical uses these four SCRs.
Unidirectional SCR: Standard and secure application core
Unidirectional SCR is the most basic and typical kind of thyristor. Its framework is a four-layer three-junction PNPN arrangement, including three electrodes: anode (A), cathode (K) and gate (G). It just enables current to flow in one instructions (from anode to cathode) and activates after the gate is caused. When activated, even if eviction signal is eliminated, as long as the anode current is more than the holding current (typically much less than 100mA), the SCR stays on.

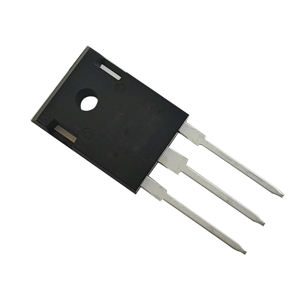

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and current resistance, with an ahead repeated optimal voltage (V DRM) of up to 6500V and a ranked on-state typical current (ITAV) of approximately 5000A. Therefore, it is commonly used in DC electric motor control, commercial heater, uninterruptible power supply (UPS) rectification parts, power conditioning gadgets and other celebrations that require constant conduction and high power handling. Its advantages are straightforward framework, low cost and high integrity, and it is a core component of numerous traditional power control systems.
Bidirectional SCR (TRIAC): Perfect for a/c control
Unlike unidirectional SCR, bidirectional SCR, likewise known as TRIAC, can attain bidirectional conduction in both favorable and unfavorable fifty percent cycles. This structure includes 2 anti-parallel SCRs, which allow TRIAC to be set off and turned on at any moment in the AC cycle without altering the circuit link technique. The in proportion conduction voltage variety of TRIAC is normally ± 400 ~ 800V, the optimum lots current is about 100A, and the trigger current is less than 50mA.
Due to the bidirectional transmission qualities of TRIAC, it is particularly appropriate for a/c dimming and rate control in home devices and consumer electronics. As an example, tools such as lamp dimmers, follower controllers, and a/c follower rate regulatory authorities all rely on TRIAC to achieve smooth power regulation. Furthermore, TRIAC also has a lower driving power need and is suitable for integrated style, so it has actually been commonly utilized in wise home systems and tiny appliances. Although the power thickness and changing speed of TRIAC are not just as good as those of new power tools, its low cost and practical use make it an important gamer in the area of tiny and moderate power a/c control.
Entrance Turn-Off Thyristor (GTO): A high-performance rep of energetic control
Gate Turn-Off Thyristor (GTO) is a high-performance power tool developed on the basis of standard SCR. Unlike regular SCR, which can just be switched off passively, GTO can be turned off actively by applying an unfavorable pulse present to eviction, hence attaining more versatile control. This function makes GTO perform well in systems that need frequent start-stop or rapid action.
(Thyristor Rectifier)
The technical criteria of GTO reveal that it has extremely high power taking care of capability: the turn-off gain has to do with 4 ~ 5, the optimum operating voltage can reach 6000V, and the optimum operating current is up to 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These performance indicators make GTO extensively used in high-power circumstances such as electrical engine grip systems, huge inverters, industrial electric motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably complicated and has high changing losses, its efficiency under high power and high dynamic feedback demands is still irreplaceable.
Light-controlled thyristor (LTT): A trusted choice in the high-voltage isolation atmosphere
Light-controlled thyristor (LTT) utilizes optical signals rather than electric signals to activate conduction, which is its biggest function that identifies it from other kinds of SCRs. The optical trigger wavelength of LTT is usually in between 850nm and 950nm, the feedback time is measured in milliseconds, and the insulation level can be as high as 100kV or above. This optoelectronic isolation mechanism substantially boosts the system’s anti-electromagnetic disturbance capacity and safety.
LTT is mostly made use of in ultra-high voltage direct existing transmission (UHVDC), power system relay protection gadgets, electromagnetic compatibility security in clinical equipment, and army radar communication systems and so on, which have very high needs for safety and security and stability. For example, many converter terminals in China’s “West-to-East Power Transmission” project have taken on LTT-based converter valve components to guarantee steady procedure under extremely high voltage conditions. Some advanced LTTs can likewise be integrated with gate control to accomplish bidirectional transmission or turn-off features, even more increasing their application range and making them an ideal selection for resolving high-voltage and high-current control problems.
