1. Material Principles and Microstructural Attributes of Alumina Ceramics
1.1 Structure, Purity Qualities, and Crystallographic Feature

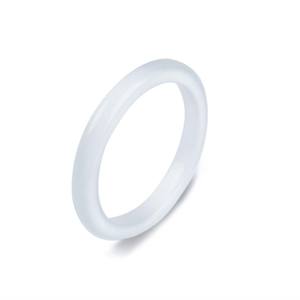

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O TWO), or light weight aluminum oxide, is just one of one of the most widely used technological porcelains in commercial engineering as a result of its superb equilibrium of mechanical strength, chemical stability, and cost-effectiveness.
When crafted right into wear liners, alumina ceramics are typically produced with pureness levels varying from 85% to 99.9%, with greater purity corresponding to enhanced firmness, use resistance, and thermal efficiency.
The leading crystalline stage is alpha-alumina, which takes on a hexagonal close-packed (HCP) framework defined by solid ionic and covalent bonding, contributing to its high melting point (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina porcelains consist of fine, equiaxed grains whose dimension and circulation are managed throughout sintering to optimize mechanical properties.
Grain sizes normally vary from submicron to several micrometers, with finer grains generally enhancing fracture sturdiness and resistance to break propagation under unpleasant filling.
Small additives such as magnesium oxide (MgO) are often introduced in trace total up to inhibit irregular grain development throughout high-temperature sintering, ensuring uniform microstructure and dimensional security.
The resulting material shows a Vickers firmness of 1500– 2000 HV, substantially surpassing that of hardened steel (usually 600– 800 HV), making it exceptionally immune to surface destruction in high-wear atmospheres.
1.2 Mechanical and Thermal Efficiency in Industrial Conditions
Alumina ceramic wear liners are selected mostly for their superior resistance to abrasive, erosive, and sliding wear systems prevalent in bulk material taking care of systems.
They possess high compressive strength (as much as 3000 MPa), good flexural stamina (300– 500 MPa), and excellent rigidity (Youthful’s modulus of ~ 380 GPa), allowing them to withstand intense mechanical loading without plastic deformation.
Although inherently brittle compared to steels, their low coefficient of rubbing and high surface area solidity minimize bit bond and decrease wear prices by orders of magnitude about steel or polymer-based options.
Thermally, alumina keeps architectural integrity up to 1600 ° C in oxidizing atmospheres, enabling use in high-temperature handling atmospheres such as kiln feed systems, central heating boiler ducting, and pyroprocessing equipment.

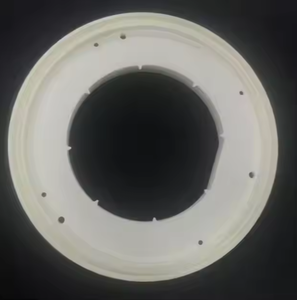

( Alumina Ceramic Wear Liners)
Its reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional security during thermal cycling, reducing the danger of fracturing due to thermal shock when properly mounted.
Furthermore, alumina is electrically insulating and chemically inert to many acids, alkalis, and solvents, making it appropriate for corrosive atmospheres where metal liners would certainly weaken rapidly.
These combined buildings make alumina porcelains excellent for safeguarding vital framework in mining, power generation, cement production, and chemical processing markets.
2. Manufacturing Processes and Style Combination Methods
2.1 Shaping, Sintering, and Quality Assurance Protocols
The manufacturing of alumina ceramic wear liners includes a series of precision manufacturing steps created to attain high thickness, marginal porosity, and constant mechanical efficiency.
Raw alumina powders are refined via milling, granulation, and developing techniques such as completely dry pressing, isostatic pressing, or extrusion, relying on the preferred geometry– floor tiles, plates, pipes, or custom-shaped segments.
Green bodies are then sintered at temperature levels between 1500 ° C and 1700 ° C in air, promoting densification through solid-state diffusion and achieving loved one densities exceeding 95%, typically coming close to 99% of academic thickness.
Complete densification is important, as residual porosity serves as stress concentrators and increases wear and fracture under service problems.
Post-sintering operations may consist of ruby grinding or washing to achieve limited dimensional tolerances and smooth surface finishes that reduce friction and fragment capturing.
Each batch goes through rigorous quality assurance, including X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural examination, and hardness and bend screening to confirm compliance with worldwide requirements such as ISO 6474 or ASTM B407.
2.2 Mounting Techniques and System Compatibility Considerations
Efficient assimilation of alumina wear linings right into commercial devices requires mindful focus to mechanical attachment and thermal growth compatibility.
Usual setup techniques consist of adhesive bonding making use of high-strength ceramic epoxies, mechanical attaching with studs or supports, and embedding within castable refractory matrices.
Glue bonding is commonly utilized for flat or delicately curved surface areas, giving uniform stress circulation and resonance damping, while stud-mounted systems permit simple substitute and are chosen in high-impact areas.
To accommodate differential thermal expansion between alumina and metallic substratums (e.g., carbon steel), engineered spaces, adaptable adhesives, or certified underlayers are incorporated to stop delamination or breaking during thermal transients.
Designers must also consider edge protection, as ceramic tiles are at risk to chipping at revealed corners; solutions consist of diagonal edges, metal shadows, or overlapping floor tile setups.
Appropriate installment makes sure long service life and makes the most of the protective function of the liner system.
3. Wear Mechanisms and Efficiency Assessment in Service Environments
3.1 Resistance to Abrasive, Erosive, and Effect Loading
Alumina ceramic wear linings excel in atmospheres dominated by 3 primary wear mechanisms: two-body abrasion, three-body abrasion, and particle disintegration.
In two-body abrasion, tough fragments or surface areas straight gouge the lining surface area, an usual event in chutes, receptacles, and conveyor transitions.
Three-body abrasion includes loosened fragments trapped in between the liner and moving material, bring about rolling and damaging activity that slowly gets rid of material.
Abrasive wear occurs when high-velocity bits impinge on the surface area, especially in pneumatic sharing lines and cyclone separators.
Due to its high hardness and low crack durability, alumina is most reliable in low-impact, high-abrasion situations.
It carries out exceptionally well versus siliceous ores, coal, fly ash, and concrete clinker, where wear prices can be decreased by 10– 50 times contrasted to light steel liners.
Nevertheless, in applications entailing duplicated high-energy influence, such as main crusher chambers, crossbreed systems combining alumina ceramic tiles with elastomeric supports or metallic guards are often utilized to soak up shock and stop crack.
3.2 Field Testing, Life Process Analysis, and Failure Setting Assessment
Performance assessment of alumina wear linings involves both lab testing and field monitoring.
Standard tests such as the ASTM G65 dry sand rubber wheel abrasion test give relative wear indices, while customized slurry erosion rigs replicate site-specific conditions.
In industrial settings, put on price is usually measured in mm/year or g/kWh, with service life forecasts based on preliminary density and observed destruction.
Failure modes include surface area polishing, micro-cracking, spalling at sides, and complete floor tile dislodgement because of glue deterioration or mechanical overload.
Origin evaluation typically discloses setup mistakes, improper grade selection, or unanticipated impact tons as main contributors to early failing.
Life cycle cost analysis continually shows that despite greater initial prices, alumina liners use superior total cost of ownership as a result of prolonged substitute intervals, lowered downtime, and reduced upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Throughout Heavy Industries
Alumina ceramic wear liners are released throughout a broad spectrum of industrial sectors where material degradation postures operational and financial difficulties.
In mining and mineral handling, they safeguard transfer chutes, mill liners, hydrocyclones, and slurry pumps from rough slurries including quartz, hematite, and other tough minerals.
In power plants, alumina tiles line coal pulverizer air ducts, boiler ash hoppers, and electrostatic precipitator components subjected to fly ash disintegration.
Concrete suppliers utilize alumina linings in raw mills, kiln inlet areas, and clinker conveyors to deal with the highly unpleasant nature of cementitious materials.
The steel market uses them in blast heating system feed systems and ladle shrouds, where resistance to both abrasion and modest thermal loads is necessary.
Also in much less traditional applications such as waste-to-energy plants and biomass handling systems, alumina porcelains provide sturdy protection against chemically aggressive and fibrous materials.
4.2 Arising Fads: Composite Systems, Smart Liners, and Sustainability
Present research concentrates on boosting the durability and capability of alumina wear systems with composite style.
Alumina-zirconia (Al Two O TWO-ZrO TWO) compounds utilize change strengthening from zirconia to enhance fracture resistance, while alumina-titanium carbide (Al two O FOUR-TiC) qualities offer improved efficiency in high-temperature sliding wear.
An additional innovation involves installing sensing units within or under ceramic liners to monitor wear progression, temperature level, and influence regularity– making it possible for anticipating maintenance and digital twin combination.
From a sustainability viewpoint, the extended life span of alumina liners minimizes product usage and waste generation, aligning with round economic situation concepts in commercial procedures.
Recycling of spent ceramic linings into refractory aggregates or building and construction products is also being checked out to minimize ecological impact.
Finally, alumina ceramic wear liners stand for a keystone of modern commercial wear security innovation.
Their phenomenal firmness, thermal stability, and chemical inertness, incorporated with fully grown manufacturing and setup practices, make them vital in combating product degradation across hefty sectors.
As material science breakthroughs and digital surveillance comes to be a lot more integrated, the future generation of wise, resilient alumina-based systems will additionally improve functional performance and sustainability in unpleasant atmospheres.
