1. Product Basics and Microstructural Layout
1.1 Structure and Crystallographic Stability of Alumina

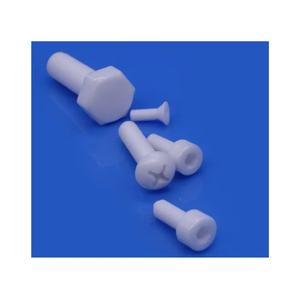

(Alumina Ceramic Nozzles)
Alumina (Al ā O SIX), particularly in its alpha phase, is a totally oxidized ceramic with a corundum-type hexagonal close-packed structure, offering extraordinary thermal security, chemical inertness, and mechanical stamina at raised temperatures.
High-purity alumina (normally 95– 99.9% Al ā O TWO) is favored for nozzle applications due to its marginal contamination material, which decreases grain boundary weakening and improves resistance to thermal and chemical destruction.
The microstructure, consisting of fine, equiaxed grains, is crafted throughout sintering to decrease porosity and make best use of density, directly affecting the nozzle’s disintegration resistance and architectural integrity under high-velocity fluid circulation.
Ingredients such as MgO are frequently presented in trace total up to hinder unusual grain growth throughout sintering, guaranteeing an uniform microstructure that sustains long-term reliability.
1.2 Mechanical and Thermal Features Relevant to Nozzle Performance
Alumina porcelains display a Vickers firmness exceeding 1800 HV, making them highly resistant to rough wear from particulate-laden fluids, an essential characteristic in applications such as sandblasting and unpleasant waterjet cutting.
With a flexural toughness of 300– 500 MPa and a compressive toughness over 2 GPa, alumina nozzles keep dimensional security under high-pressure operation, generally varying from 100 to 400 MPa in commercial systems.
Thermally, alumina keeps its mechanical properties up to 1600 Ā° C, with a reduced thermal growth coefficient (~ 8 Ć 10 ā»ā¶/ K) that provides superb resistance to thermal shock– crucial when exposed to quick temperature level changes during startup or closure cycles.
Its thermal conductivity (~ 30 W/m Ā· K) is sufficient to dissipate local warmth without causing thermal slopes that could bring about fracturing, balancing insulation and warmth administration needs.
2. Manufacturing Processes and Geometric Precision
2.1 Shaping and Sintering Methods for Nozzle Manufacture
The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is refined into an environment-friendly body utilizing approaches such as chilly isostatic pushing (CIP), injection molding, or extrusion, relying on the wanted geometry and batch dimension.

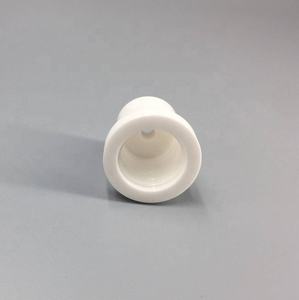

( Alumina Ceramic Nozzles)
Cold isostatic pressing applies consistent pressure from all directions, generating a homogeneous density circulation important for reducing flaws during sintering.
Shot molding is used for complicated nozzle shapes with internal tapers and great orifices, permitting high dimensional accuracy and reproducibility in automation.
After forming, the eco-friendly compacts undergo a two-stage thermal treatment: debinding to remove organic binders and sintering at temperature levels between 1500 Ā° C and 1650 Ā° C to attain near-theoretical density with solid-state diffusion.
Precise control of sintering atmosphere and heating/cooling rates is vital to avoid warping, breaking, or grain coarsening that could endanger nozzle performance.
2.2 Machining, Polishing, and Quality Control
Post-sintering, alumina nozzles typically need precision machining to attain tight tolerances, especially in the orifice area where circulation characteristics are most conscious surface area coating and geometry.
Ruby grinding and washing are utilized to refine inner and external surface areas, attaining surface area roughness worths below 0.1 Āµm, which reduces flow resistance and protects against bit build-up.
The orifice, typically ranging from 0.3 to 3.0 mm in diameter, should be without micro-cracks and chamfers to ensure laminar circulation and regular spray patterns.
Non-destructive testing methods such as optical microscopy, X-ray evaluation, and pressure biking tests are employed to validate structural integrity and performance uniformity before release.
Customized geometries, consisting of convergent-divergent (de Laval) accounts for supersonic circulation or multi-hole varieties for follower spray patterns, are significantly produced making use of advanced tooling and computer-aided layout (CAD)-driven production.
3. Useful Advantages Over Alternative Nozzle Materials
3.1 Superior Erosion and Deterioration Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina exhibits much greater resistance to abrasive wear, specifically in environments including silica sand, garnet, or various other difficult abrasives made use of in surface preparation and cutting.
Metal nozzles weaken quickly due to micro-fracturing and plastic deformation, needing constant substitute, whereas alumina nozzles can last 3– 5 times longer, considerably reducing downtime and functional expenses.
Furthermore, alumina is inert to a lot of acids, antacid, and solvents, making it ideal for chemical spraying, etching, and cleaning procedures where metal elements would corrode or pollute the liquid.
This chemical security is especially valuable in semiconductor production, pharmaceutical handling, and food-grade applications calling for high pureness.
3.2 Thermal and Electric Insulation Quality
Alumina’s high electric resistivity (> 10 Ā¹ā“ Ī© Ā· centimeters) makes it optimal for usage in electrostatic spray covering systems, where it prevents charge leakage and ensures uniform paint atomization.
Its thermal insulation ability permits risk-free procedure in high-temperature splashing atmospheres, such as fire splashing or thermal cleaning, without heat transfer to bordering components.
Unlike steels, alumina does not catalyze unwanted chemical reactions in responsive liquid streams, protecting the honesty of delicate formulas.
4. Industrial Applications and Technical Impact
4.1 Roles in Abrasive Jet Machining and Surface Therapy
Alumina ceramic nozzles are indispensable in abrasive blowing up systems for corrosion elimination, paint stripping, and surface texturing in vehicle, aerospace, and building markets.
Their capability to preserve a constant orifice diameter over expanded usage guarantees consistent abrasive velocity and influence angle, directly affecting surface finish top quality and procedure repeatability.
In unpleasant waterjet cutting, alumina concentrating tubes direct the high-pressure water-abrasive blend, holding up against erosive pressures that would rapidly weaken softer products.
4.2 Use in Additive Production, Spray Layer, and Liquid Control
In thermal spray systems, such as plasma and fire spraying, alumina nozzles direct high-temperature gas flows and liquified particles onto substratums, gaining from their thermal shock resistance and dimensional security.
They are likewise used in precision spray nozzles for agricultural chemicals, inkjet systems, and fuel atomization, where wear resistance ensures lasting dosing accuracy.
In 3D printing, specifically in binder jetting and product extrusion, alumina nozzles supply fine powders or viscous pastes with minimal blocking or wear.
Arising applications include microfluidic systems and lab-on-a-chip tools, where miniaturized alumina components provide longevity and biocompatibility.
In recap, alumina ceramic nozzles stand for an essential intersection of materials science and industrial engineering.
Their remarkable mix of solidity, thermal security, and chemical resistance enables trustworthy efficiency in several of one of the most demanding fluid handling atmospheres.
As commercial procedures push toward greater pressures, finer resistances, and much longer service periods, alumina ceramics remain to establish the criterion for resilient, high-precision flow control components.
